Match the symptom to the first safe check
Use the symptom only to choose the first subsystem; it does not prove which part is at fault.
| Symptom | First check | Stop or avoid |
|---|---|---|
| Gas leak | Degas safely, then inspect the exact capsule, adapter and seal interface | Do not assume the chamber is responsible |
| Part will not seat | Confirm FSC or FSC XP, then inspect chamber and magazine seating separately | Stop rather than apply force |
| Inconsistent feed | Check projectile length, profile, magazine seating and feed path | Do not transfer another platform's loading rule |
| Variable measured result | Check gas state, seals, barrel, projectile and temperature | Do not assign the change to one part without isolating it |
Troubleshoot one subsystem at a time
FSC setup problems are easiest to solve when the magazine, CO₂ or HPA supply, seals, chamber, and projectile path are checked separately. Changing several parts at once makes it difficult to identify the actual cause and can hide a simple seating or sealing issue.
Step 1: confirm the exact platform
FSC and FSC XP are not interchangeable names. TCP, T8.1, and T9.1 also keep their own product boundaries even when a specific part lists several of them together. The older Z-RAM Complete Stainless Steel Firing Bolt Assembly Set and its included internal parts are confirmed for FSC, TCP, T8.1, and T9.1. Their compatibility with FSC XP is not confirmed, which does not mean incompatible.
The ASA Tuning Chamber Extra Long is a separate product route that explicitly covers FSC and FSC XP. Do not use that separate confirmation to extend FSC XP compatibility to an older assembly or to each component inside a set.
Step 2: inspect the gas and seal path
- Remove the gas source and follow the marker manufacturer’s safe handling procedure.
- Check that the correct capsule, magazine, adapter, or HPA route is being used for the exact configuration.
- Inspect accessible seals for damage, contamination, twisting, or incorrect seating.
- Use only the specified replacement seal or service kit for the named component.
- Reassemble in the documented order and test for leaks before changing another subsystem.
A leak can come from a seal, seating surface, capsule interface, adapter, or another connection. Do not assume the chamber is the cause until the leak location has been isolated.
Step 3: separate magazine fit from chamber fit
The Z-Mag is fully compatible and flush with FSC and TCP. It is also functionally compatible with T8.1 and T9.1, where a small visible gap at the grip is cosmetic. It accepts 8 g, 12 g, 16 g, and 20 g CO₂ capsules. Those magazine facts do not establish chamber compatibility or make the magazine part of a chamber kit.
Step 4: check projectile and feed behavior
Confirm caliber, projectile length, and the feed path. A projectile that is suitable for one .68 feed system may require another loading method in a different .68 marker. Never force a projectile or use a loading instruction transferred from another platform.
When to stop and ask for help
Stop if the exact generation is unclear, a seal continues to leak, a part will not seat without force, the gas path does not match the product instructions, or the FSC XP relationship is not explicitly confirmed. Record the exact marker, generation, product name, and observed symptom without disassembling further than the relevant instructions allow.
Quick troubleshooting order
Platform → generation → gas source → capsule or adapter → seals → chamber seating → magazine seating → projectile and feed path → controlled test. This order minimizes unnecessary part changes and keeps each conclusion tied to an observable check.
Products matched to this guide

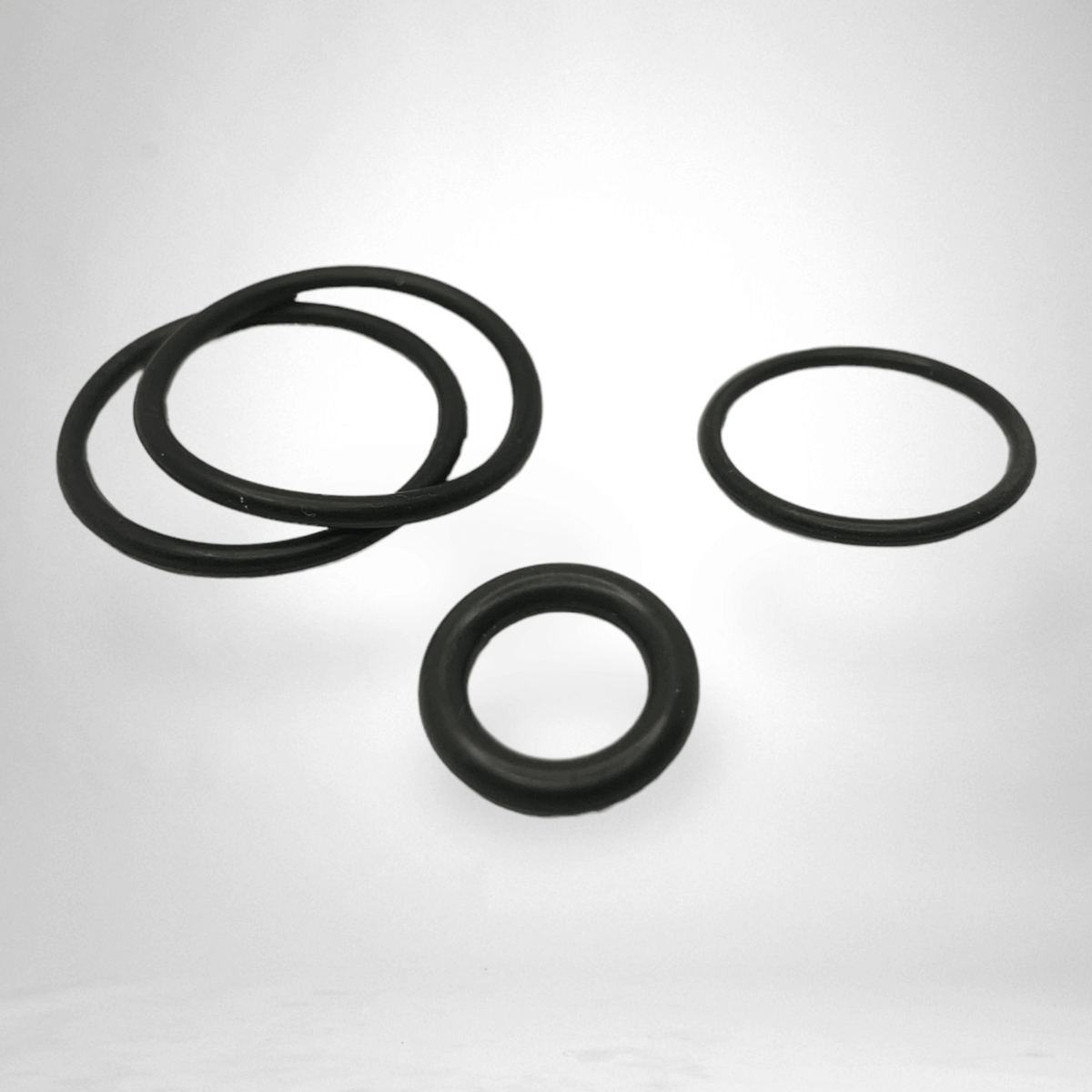

FSC/TCP Chamber O-Ring Replacement Kit
A product-specific seal route for the named chamber system; use only after identifying the leak location.
View the chamber O-ring kit
ASA Tuning Chamber Extra Long for FSC/FSC XP/TCP
A separate chamber route that explicitly includes FSC XP; it does not extend FSC XP fit to older assembly parts.
View the FSC/FSC XP chamberOn the First Strike FSC platform, the useful sequence is diagnostic rather than speculative: isolate the gas interface, sealing surface, chamber seating, magazine and feed path before selecting a replacement part.
